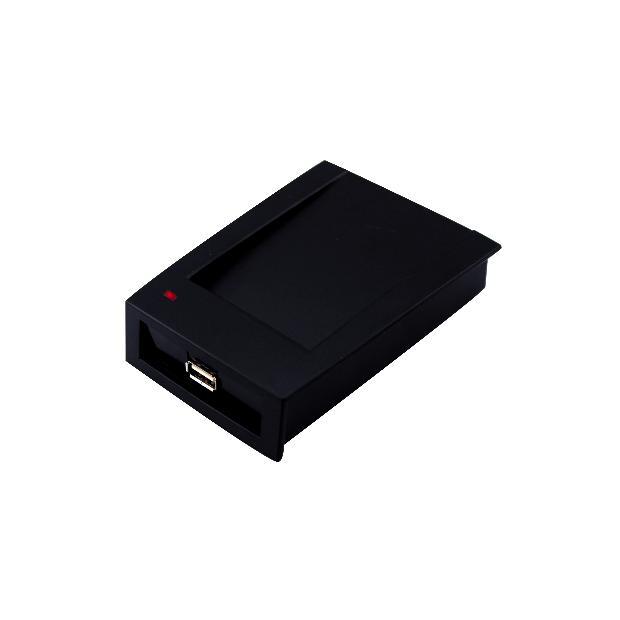

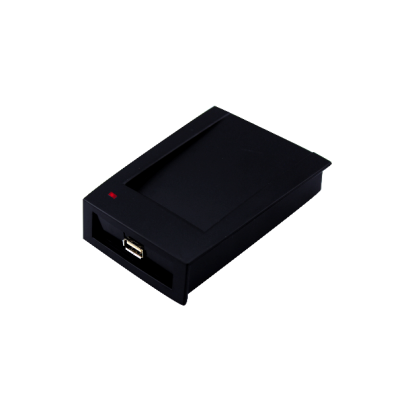

RFID Card Reader (plug and play):

Descriptions:

a high performance RFID smart card Desktop reader without driver, reader distance up to 80mm, it’s not only simple aspect, but also stable and reliable data. Widely used for RFID Radio Frequency Identification system and project, such as automated parking management system, personal identification, access controller, production access control, etc.

Specifications:

Frequency band

125 KHz ± 3% , 13.56MHz±3%

Dimensions

104 mm x 68 mm x 10 mm

weight

140 g

Host interface

USB
Wegand
RS-232
RS-485

Output format

RS232 Format data output (customizable)

Input voltage range

5V

Working current

100MA

Card reading speed

0.2 S

Card type

EM / Mifare

Card reading method

26 / 34 (optional)

Operating temperature

-10~ +70

other

Status Indicator: 2-color LED ("red" power LED, "green"
status indicator)
Built-in horn: buzzer, can control LED and buzzer
Output format: support custom format

Readable IC

LF : EM4100 / EM4200 / EM4305 / EM4450 / TK4100
TEMIC 5530 / TEMIC 5567 / TEMIC 5577
HiTAG1 / HiTAG2 / HiTAG S2048

HF : ISO 14443A
Mifare S50 / Mifare S70 / Mifare Ultralight / Mifare Desfire
Mifare F08/ Ntag 203/ Ntag 213/ Ntag 215/ Ntag 216
Mifare Plus / Mifare ultralight Evl / Mifare ultralight C
ISO 15693
I-Code SLI / I-Code SLI-S / I-Code EPC / MSR3200
ST LR12K / TI Tag-it HF-I Standard
