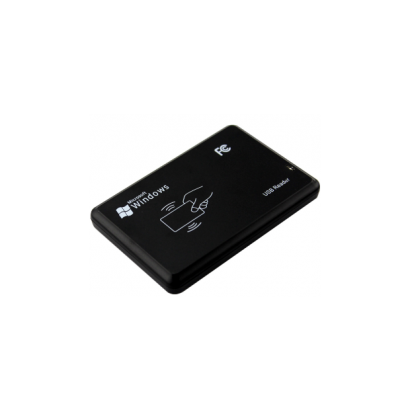

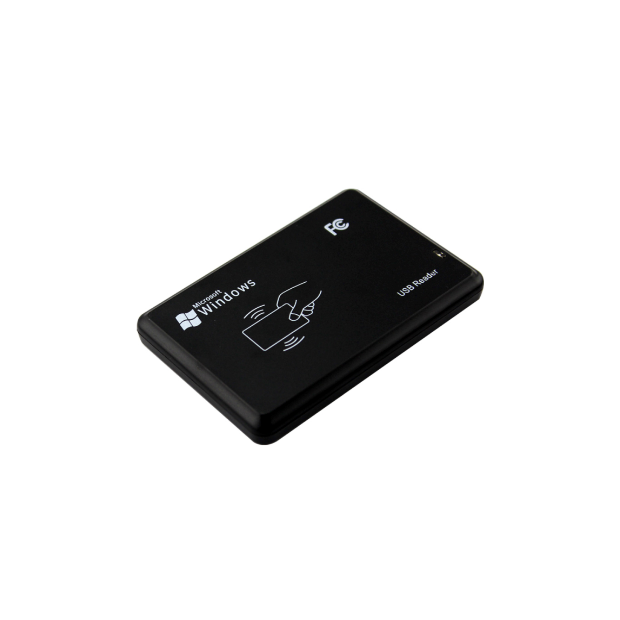

RFID Smart Card Reader:
Descriptions:
a high performance RFID smart card Desktop reader without driver, reader distance up to 80mm, it’s not only simple aspect, but also stable and reliable data. Widely used for RFID Radio Frequency Identification system and project, such as automated parking management system, personal identification, access controller, production access control, etc.
Specifications:
|
Frequency band |
125 KHz ± 3% , 13.56MHz±3% |
|
Dimensions |
104 mm x 68 mm x 10 mm |
|
weight |
140 g |
|
Host interface |
USB |
|
Output format |
RS232 Format data output (customizable) |
|
Input voltage range |
5V |
|
Working current |
100MA |
|
Card reading speed |
0.2 S |
|
Card type |
EM / Mifare |
|
Card reading method |
26 / 34 (optional) |
|
Operating temperature |
-10℃~ +70℃ |
|
other |
Status Indicator: 2-color LED ("red" power LED, "green" |
|
Readable IC |
LF : EM4100 / EM4200 / EM4305 / EM4450 / TK4100 |
|
HF : ISO 14443A |
