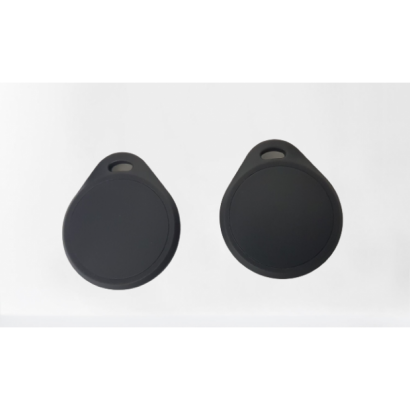

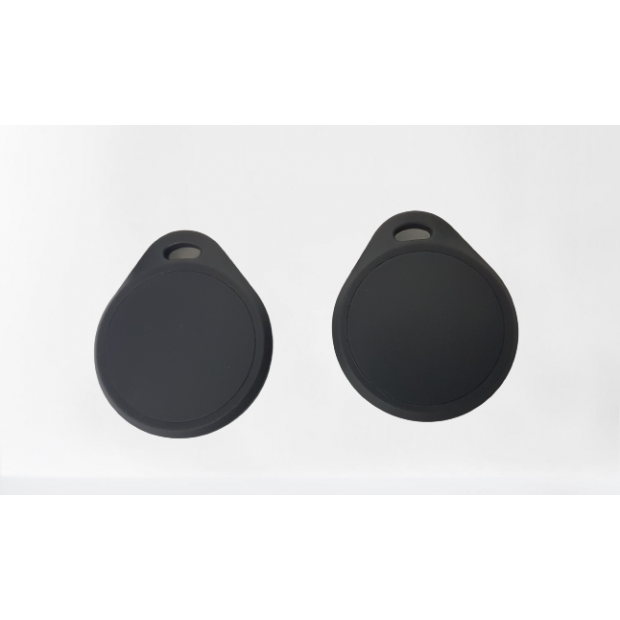

RFID Keyfob Flat Shape:

What we have:

• Variety of RFID IC on option (HF/UHF/LF) for alternation.
• Waterproof, Multiple Colors and Shapes.
• Laser Printing / Silkscreen Printing Logo.

Applications:

Specifications:

Frequency	125 KHz ± 3% N 13.56MHz±3% 865-868MHZN 902-928MHZ±3%
Size	41.6 x 35.7 x 6.1 mm (Lx xH)
Weight	5.8 g
Material	ABS
Key-ring Weight	8.8 g
Key-ring Material	Steel N Iron N Zinc-Alloy
Color	Gray ( Customized color availabe )
Protection Class	IP66
Operating Temperature	-40°C~ +60°C
Process	UltraSonic
Package	50 Piece / Box ; 20 Box / 1 Carton
Available RFID Chip	LF : EM4100 / EM4200 / EM4305 / EM4450 / TK4100 TEMIC 5530 / TEMIC 5567 / TEMIC 5577 HiTAG1 / HiTAG2 / HiTAG S2048
	HF : ISO 14443A Mifare S50 / Mifare S70 / Mifare Ultralight / Mifare Desfire Mifare F08/ Ntag 203/ Ntag 213/ Ntag 215/ Ntag 216 Mifare Plus / Mifare ultralight Evl / Mifare ultralight C ISO 15693 I-Code SLI / I-Code SLI-S / I-Code EPC / MSR3200 ST LR12K / TI Tag-it HF-I Standard
	UHF : Nxp U8 / Nxp U9 / IMPINJ Monza 4QT

Descriptions:

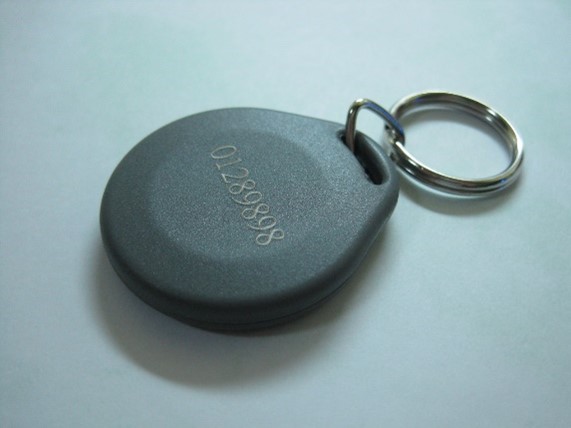

The rfid keyfob encompasses RFID technology with the ability to customize to a customer’s specifications. Users may choose from various colors and even add a corporate logo or design. Serial numbers may also be printed for easy identification.

The customer provides the image/ laser engraving format (monochrome, gradient effect can not be laser engraved) to develop the laser engraved format or pattern effect.

The internal code of the card or TAG is printed on the product by means of a typeface head, and there are many kinds of coding formats, which can be provided by the customer or in the company's standard format (the company's coding format sample) to spray the code.
