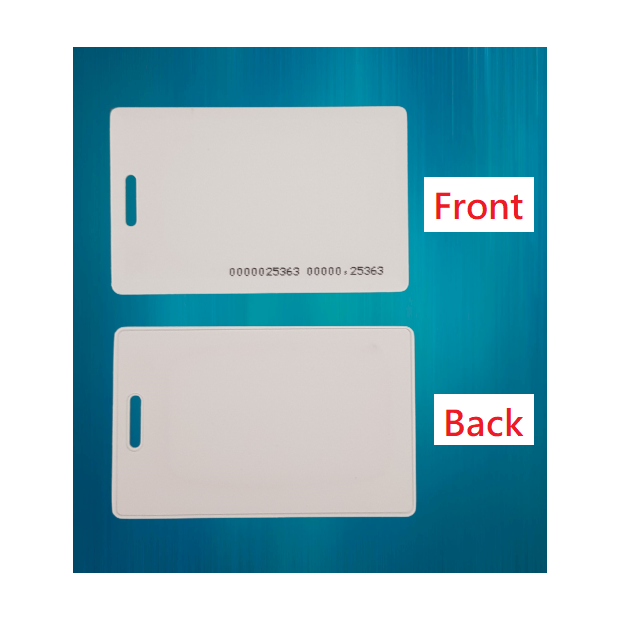

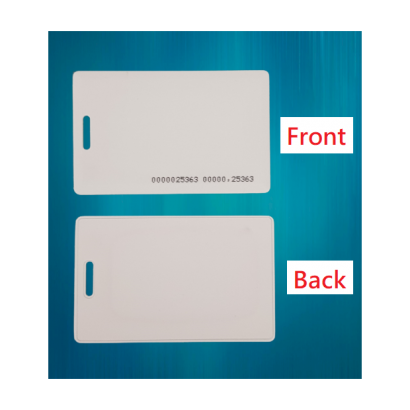

Clamshell Card:
Descriptions:
Clamshell Card is a cost-effective solution. Also, the robust housing makes no easy damage by bending or torsion.
This tapping card is a type of proximity card that uses radio frequency identification (RFID) technology. It is called a "clamshell" card because it consists of two rigid plastic pieces that are joined together using a hinge, similar to a clamshell. The card is designed to protect the internal RFID components from damage and wear.
Applications:
Clamshell cards are commonly used for access control systems in various environments, such as office buildings, educational institutions, and parking facilities. They are durable and resistant to bending or flexing due to their rigid construction. The two halves of the clamshell card can be designed to display logos, branding, or identification information on the outside for easy recognition and identification.
Specifications:
| Frequency | 125 KHz ± 3% N 13.56MHz±3% 865-868MHZ, 902-928MHZ±3% |

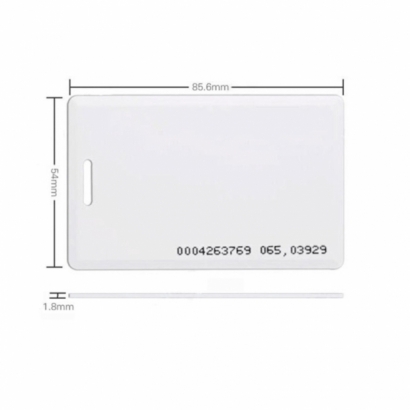

| Size | 85.6 x 54 x 1.8 mm (LxWxH) |
| Weight | 8 g |
| Material | ABS Housing+ PVC Sticker |
| Color | White ( Customized color availabe ) |
| Protection Class | IP66 |
| Operating Temperature | -10°C- +50°C |
| Package | 100 Piece / Box 10 Box / 1 Carton 20 Box / 1 Carton |
| Available RFID Chip |
LF : EM4100 / EM4200 / EM4305 / EM4450 / TK4100 TEMIC 5530 / TEMIC 5567 / TEMIC 5577 HiTAG1 / HiTAG2 / HiTAG S2048 |
| HF : ISO 14443A Mifare S50 / Mifare S70 / Mifare Ultralight / Mifare Desfire Mifare F08/ Ntag 203/ Ntag 213/ Ntag 215/ Ntag 216 Mifare Plus / Mifare ultralight Evl / Mifare ultralight C ISO 15693 I-Code SLI / I-Code SLI-S / I-Code EPC / MSR3200 ST LR12K / TI Tag-it HF-I Standard |
|
| UHF : Nxp U8 / Nxp U9 / IMPINJ Monza 4QT |
