RFID Fabric Wristband
Applications:
Access control system / Attendance system / Elevator floor control / Electronic Mailbox/NFC
Description:

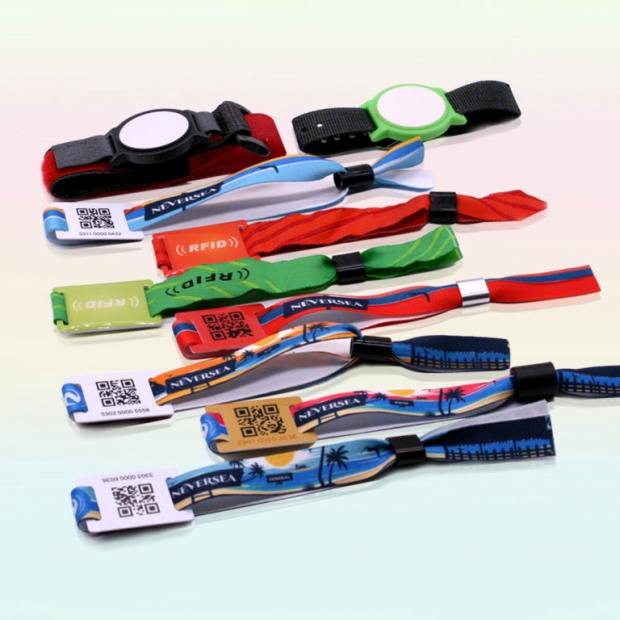

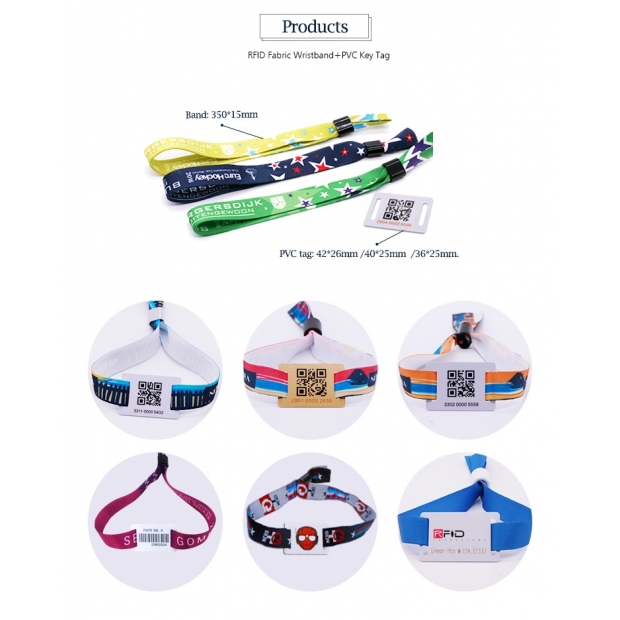

Our fabric RFID wristbands are made of a cloth wristband with an RFID tag encapsulated in a housing that slides onto the band. Customer branding can be either woven or dye sub printed onto the band, customer logo can be printed on the tag face, serial numbers can be lasered onto band or tag to meet any requirement. Plastic clasp is used to secure the band so that it locks on and cannot be removed unless cloth wristband is cut to remove it from the wrist. RFID tag remains readable after the cloth wristband is cut. Optional re-usable clasp can make the band easy to put on and remove.
Specifications:
|
Frequency
|
125 KHz ± 3% N 13.56MHz±3%
865-868MHZN 902-928MHZ±3% |
|
Size
|

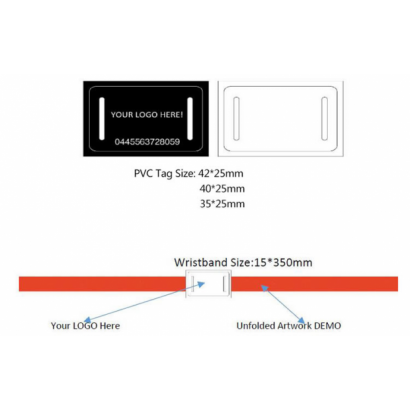

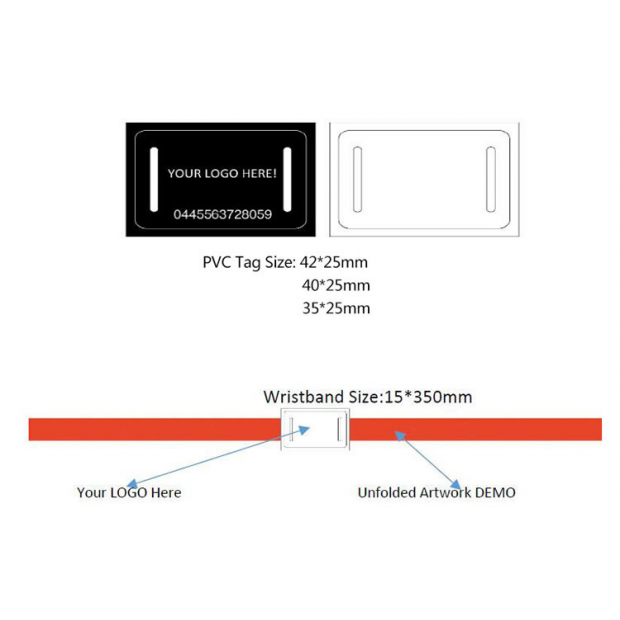

Please refer to the product size chart at the bottom of the page
|
|
Color
|
Customized color availabe
|
|
Protection Class
|
IP66
|
|
Operating Temperature
|
-10°C- +60°C
|
|
Available
RFID Chip |
: EM4100 / EM4200 / EM4305 / EM4450 / TK4100
TEMIC 5530 / TEMIC 5567 / TEMIC 5577 HiTAG1 / HiTAG2 / HiTAG S2048 |
|
HF : ISO 14443A
Mifare S50 / Mifare S70 / Mifare Ultralight / Mifare Desfire Mifare F08/ Ntag 203/ Ntag 213/ Ntag 215/ Ntag 216 Mifare Plus / Mifare ultralight Evl / Mifare ultralight C ISO 15693 I-Code SLI / I-Code SLI-S / I-Code EPC / MSR3200 ST LR12K / TI Tag-it HF-I Standard |
|
|
UHF : Nxp U8 / Nxp U9 / IMPINJ Monza 4QT
|
