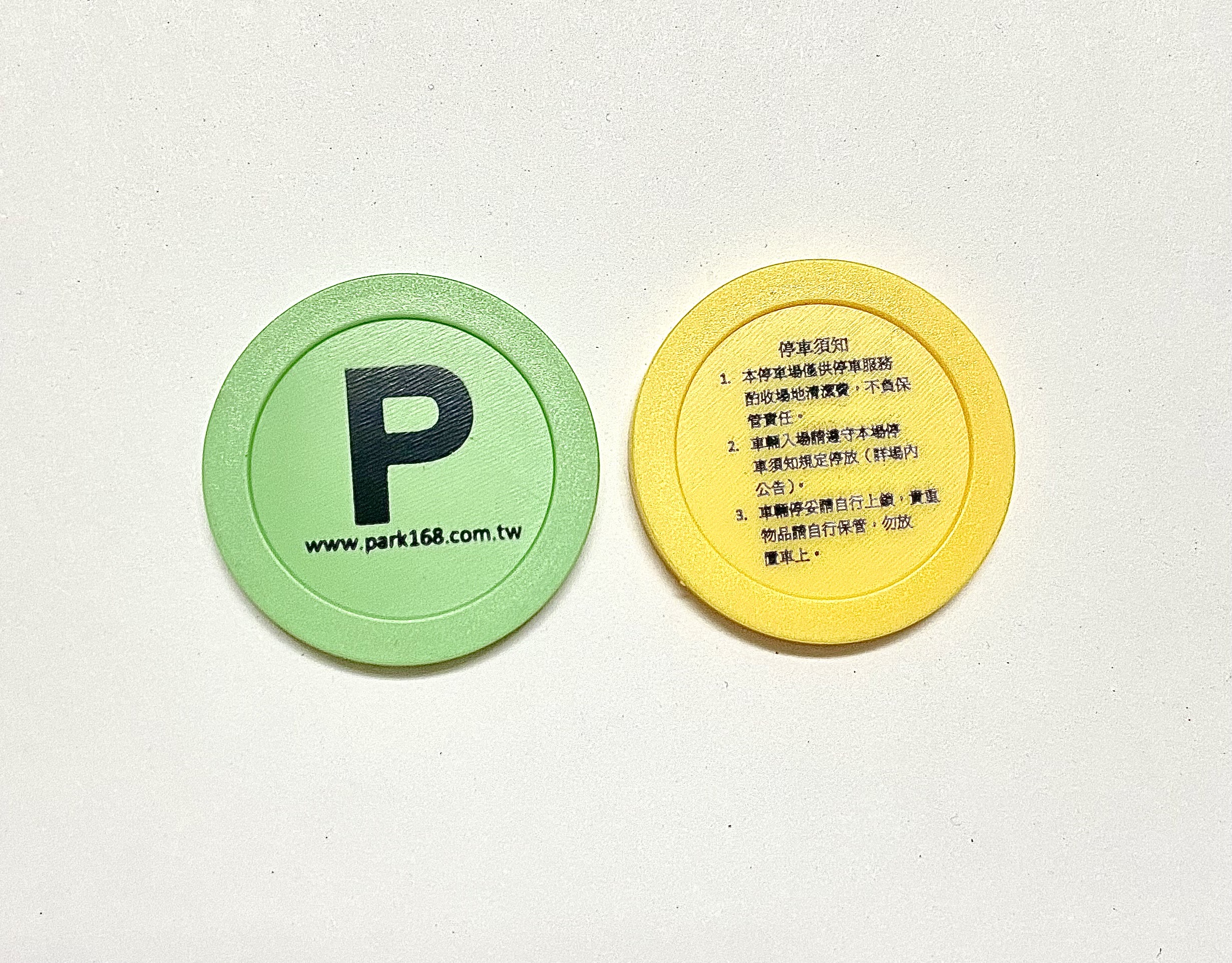

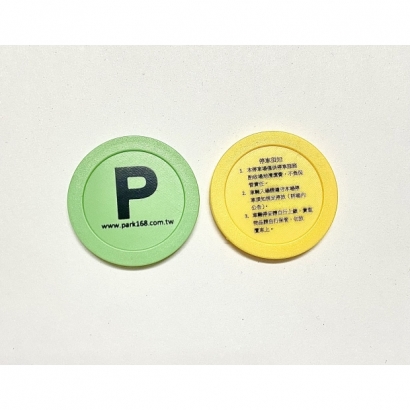

Parking Coin - 30 Outer Diameter 23 Inner Diameter:
Applications:
Parking Meters/Management
Specifications:
|
Frequency
|
125 KHz ± 3% N 13.56MHz±3%
865-868MHZN 902-928MHZ±3% |
|
Size
|
30Φmm
|
|
Weight
|
2g
|
|
Material
|
ABS
|
|
Protection Class
|
Customized color availabe
|
|
Color
|
IP68
|
|
Operating Temperature
|
-20°C- +60°C
|
|
Process
|
Ultrasonic/Secondary Penetration Injection Molding
|
|
Package
|
50 Piece / Box ; 20 Box / 1 Carton
|
|
Available
RFID Chip |
LF : EM4100 / EM4200 / EM4305 / EM4450 / TK4100
TEMIC 5530 / TEMIC 5567 / TEMIC 5577 HiTAG1 / HiTAG2 / HiTAG S2048 |
|
HF : ISO 14443A
Mifare S50 / Mifare S70 / Mifare Ultralight / Mifare Desfire Mifare F08/ Ntag 203/ Ntag 213/ Ntag 215/ Ntag 216 Mifare Plus / Mifare ultralight Evl / Mifare ultralight C ISO 15693 I-Code SLI / I-Code SLI-S / I-Code EPC / MSR3200 ST LR12K / TI Tag-it HF-I Standard |
|
|
UHF : Nxp U8 / Nxp U9 / IMPINJ Monza 4QT
|
Customized Item:
Laser engraving:
The customer provides the image/ laser engraving format (monochrome, gradient effect can not be laser engraved) to develop the laser engraved format or pattern effect.
Inkjet number:
The internal code of the Token is printed on the product by means of a typeface head, and there are many kinds of coding formats, which can be provided by the customer or in the company's standard format (the company's coding format sample) to spray the code.
.jpg)
Design mold:
According to the size, drawing and text provided by the customer, the mold is designed,and the customized parking ticket card is mass-produced.
Other items:
Product size, appearance color, and induction frequency can be customized.
