RFID Glass Tag:
Descriptions:

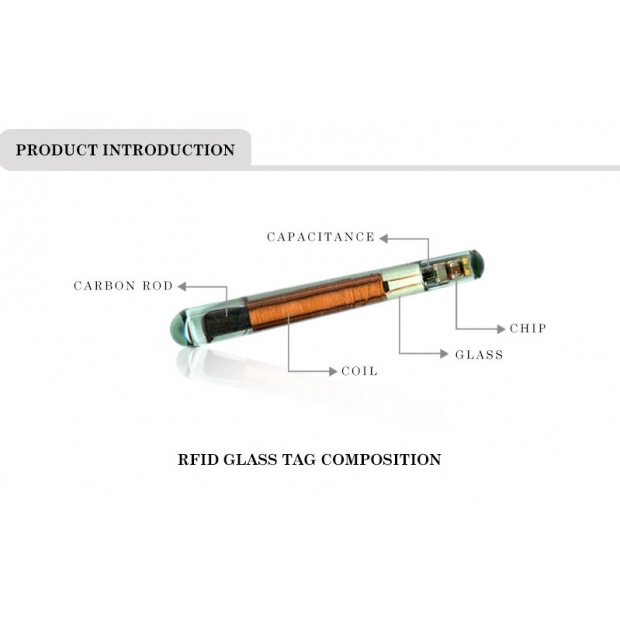

RFID Glass Tag help manage and safeguard animals. Standard Glass Tag units are enclosed in biocompatible glass making them harmless to animals. PIT tag is specially designed for animal and plant identification management, healthy breeding, traceability, species protection and traceability management. Products are widely used in the field of fish (Ocean and fresh water), small and large mammals, reptiles and amphibians, birds and bats and other living animals recognition, as well as rocks, plants, trees and other general object recognition.
Applications:
Pet tracking/ livestock/ laboratory plant and animal identification
Specifications:
|
Frequency
|
125MHz+3% • 134.25MHz±3% N 13.56MHz±3%
|
|

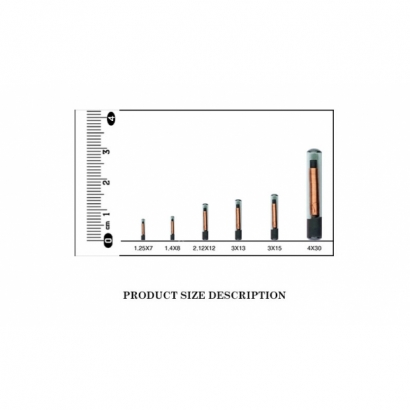

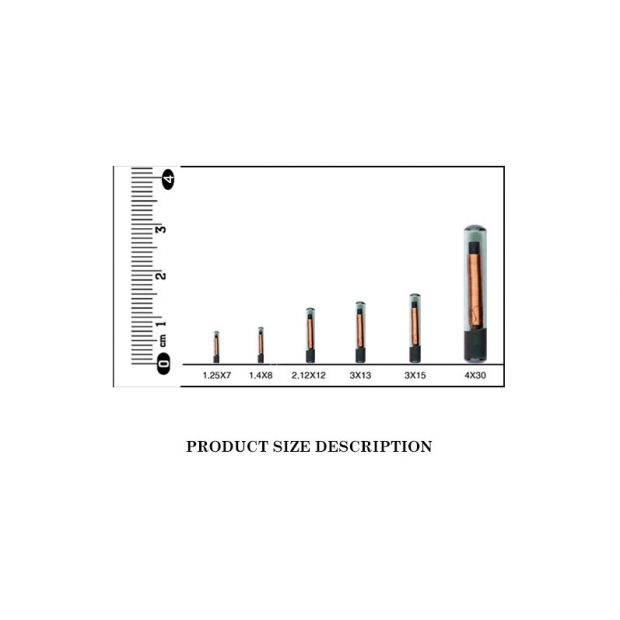

Size
|
01.25*7mm N 01.4*8mm N 03*13mm N 03*15mm
04*22mm N 04*30mm or customized |
|
Weight
|
100MG+/-35MG
|
|
Material
|
Bioglass
|
|
Color
|
Transparent
|
|
Protection Class
|
IP68
|
|
Operating/Storage
Temperature |
-25°C- +85°C
|
|
Available
RFID Chip |
LF : EM4100 / EM4200 / EM4305 / EM4450 / TK4100
TEMIC 5530 / TEMIC 5567 / TEMIC 5577 HiTAG1 / HiTAG2 / HiTAG S2048 |
|
HF : ISO 14443A
Mifare S50 / Mifare S70 / Mifare Ultralight / Mifare Desfire Mifare F08/Ntag 203/ Ntag 213/ Ntag 215/ Ntag 216 Mifare Plus / Mifare ultralight Evl / Mifare ultralight C ISO 15693 I-Code SLI / I-Code SLI-S / I-Code EPC / MSR3200 ST LR12K / TI Tag-it HF-I Standard |
