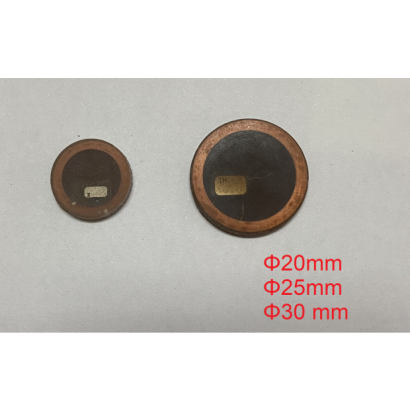

Coin Tag:
Applications:
Coin-type transparent rubber buckle/lane control
Descriptions:
The RFID Coin Tag is designed as a tag for The warehouse managerment, and property tracking, it can be install on the pallet, the cartons, the machine etc.
Specifications:
|
Frequency
|
125 KHz ± 3% N 13.56MHz±3%
|
|
Size
|
20Φ mm / (I) 25Φ mm / 30Φ mm
|
|
Weight
|
0.5g N 0.8g N 1.2g
|
|
Material
|
High temperature resistance resin
|
|
Color
|
Brown
|
|
Operating/Storage
Temperature |
-20°C- +60°C
|
|
Package
|
50 pcs/box N 100 pcs/box
|
|
Available
RFID Chip |
: EM4100 / EM4200 / EM4305 / EM4450 / TK4100
TEMIC 5530 / TEMIC 5567 / TEMIC 5577 HiTAG1 / HiTAG2 / HiTAG S2048 |
|
HF : ISO 14443A
Mifare S50 / Mifare S70 / Mifare Ultralight / Mifare Desfire Mifare F08/Ntag 203/ Ntag 213/ Ntag 215/ Ntag 216 Mifare Plus / Mifare ultralight Evl / Mifare ultralight C ISO 15693 I-Code SLI / I-Code SLI-S / I-Code EPC / MSR3200 ST LR12K / TI Tag-it HF-I Standard |
