PVC Tag:
Applications:
Induction small patch/access control/item management/integrated proximity card, dual frequency card
Descriptions:
PVC Tag is an economic tag that can quickly fit an object for tagging purpose. Built by lamination process, the tag is graded as IP68.
Specifications:
|
Frequency
|
125 KHz ± 3% N 13.56MHz±3%
|
|
Size
|

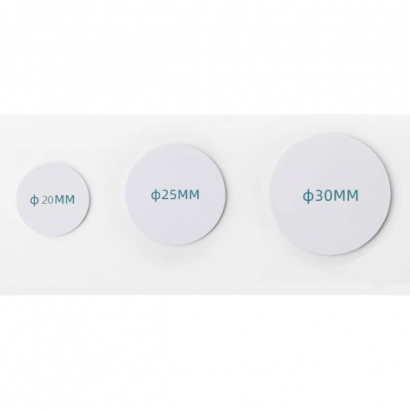

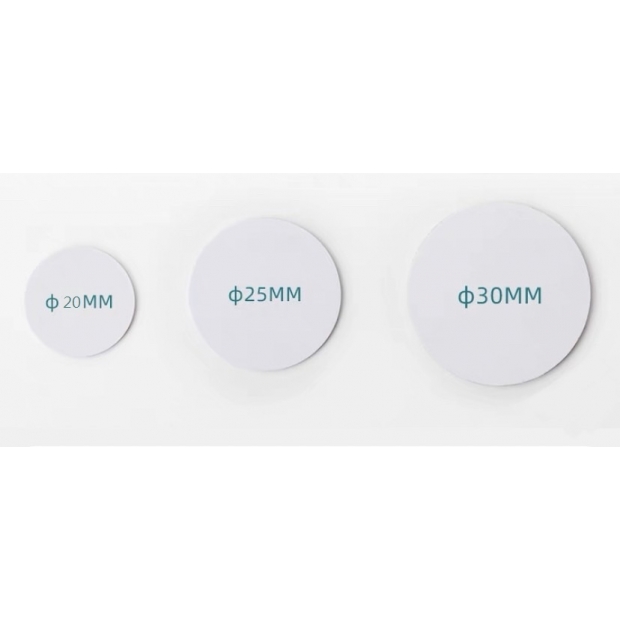

Φ18mm /Φ20mm / Φ23mm / Φ25mm / Φ30mm / Φ32mm
|
|
Weight
|
lg (Φ20mm) / 1.1g (Φ25mm) / 1.2g (Φ30mm)
|
|
Material
|
PVC
|
|
Protection Class
|
IP68
|
|
Operating/Storage
Temperature |
-20°C- +55°C
|
|
Package
|
50 pcs/box / 100 pcs/box
|
|
Available
RFID Chip |
LF : EM4100 / EM4200 / EM4305 / EM4450 / TK4100
TEMIC 5530 / TEMIC 5567 / TEMIC 5577 HiTAG1 / HiTAG2 / HiTAG S2048 |
|
HF : ISO 14443A
Mifare S50 / Mifare S70 / Mifare Ultralight / Mifare Desfire Mifare F08/Ntag 203/ Ntag 213/ Ntag 215/ Ntag 216 Mifare Plus / Mifare ultralight Evl / Mifare ultralight C ISO 15693 I-Code SLI / I-Code SLI-S / I-Code EPC / MSR3200 ST LR12K / TI Tag-it HF-I Standard |
Customized Item:

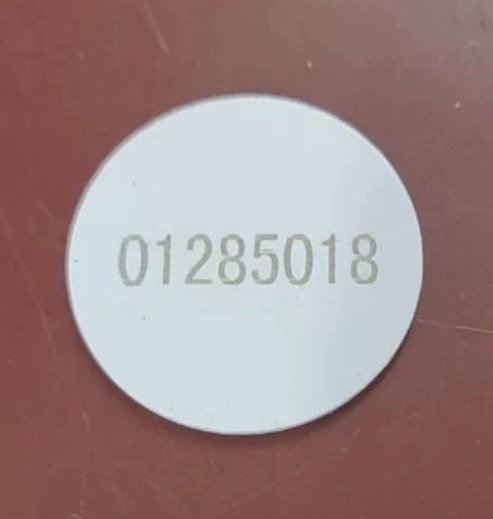

Laser engraving:
The customer provides the image/ laser engraving format (monochrome, gradient effect can not be laser engraved) to develop the laser engraved format or pattern effect.

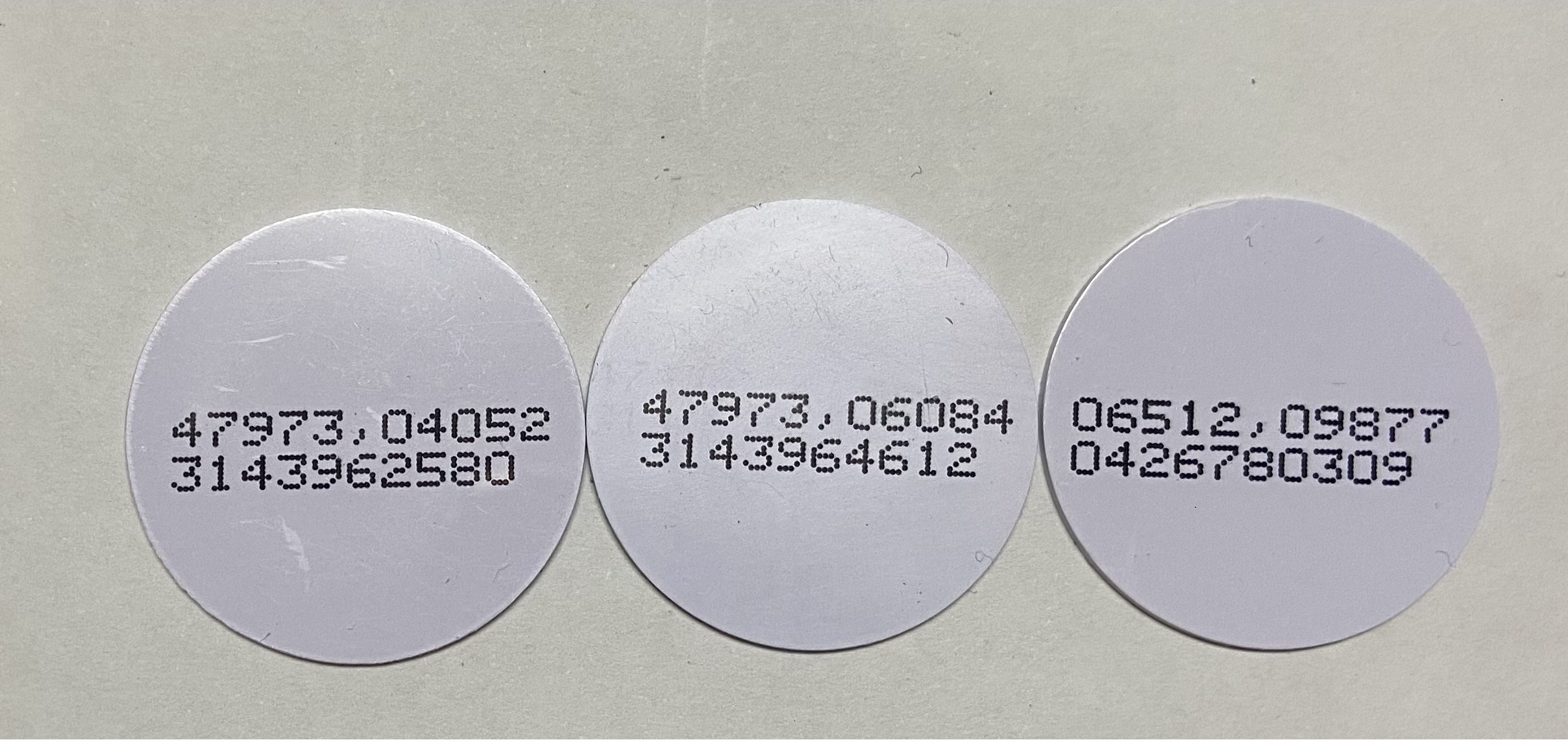

Inkjet number:
The internal code of the card or TAG is printed on the product by means of a typeface head, and there are many kinds of coding formats, which can be provided by the customer or in the company's standard format (the company's coding format sample) to spray the code.

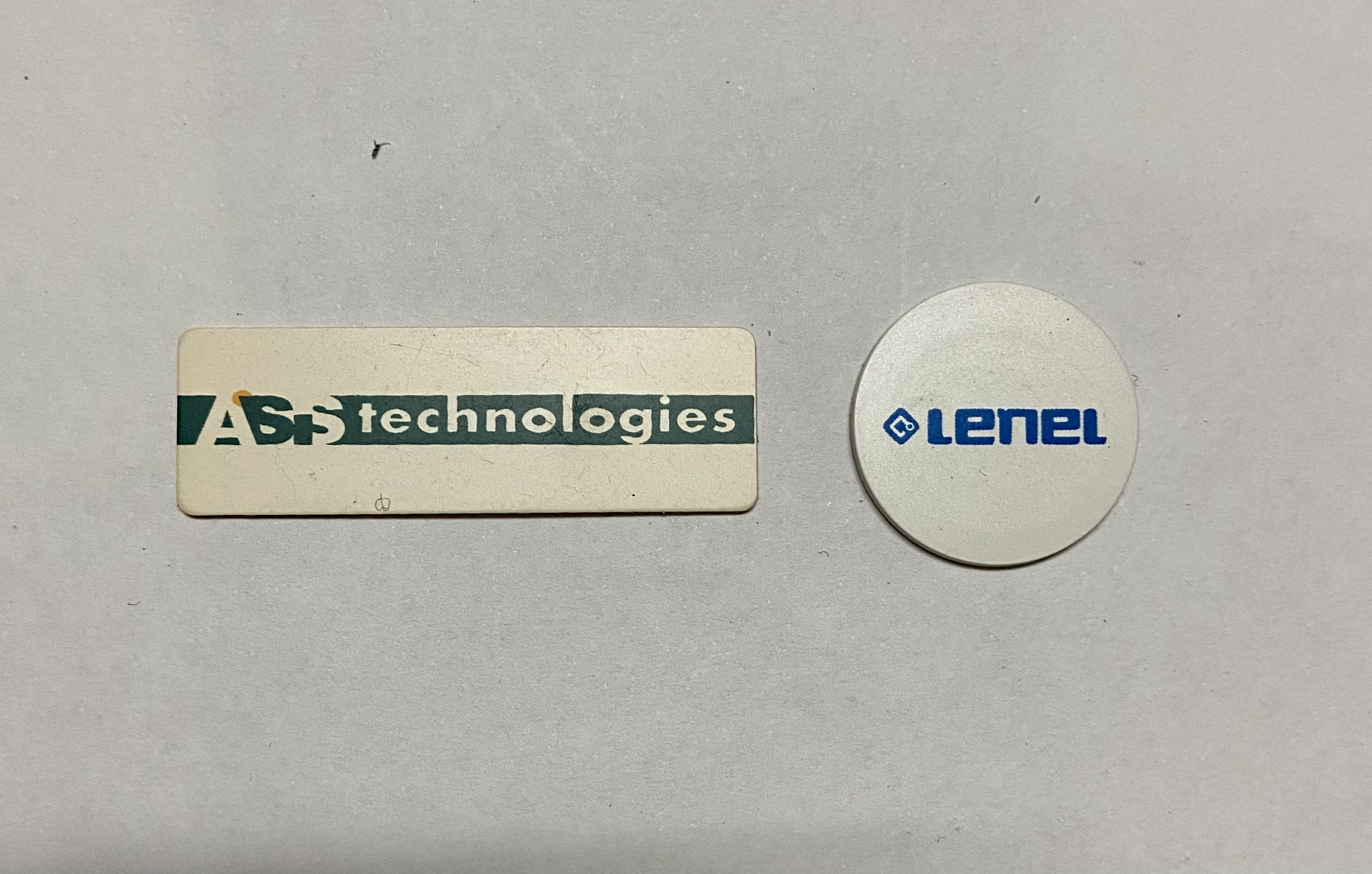

Color printing:
Artwork or graphic design will be provided by client’s side (*.AI、*.CDR、*.JPG), and we will print this and manufacture.
Other items:
Product size, appearance color, and induction frequency can be customized.
