ISO Card is a universal used and popular RFID transponder form factor. GN can establish card with PVC, PETG or even PETF to make the card body with enhanced heat-resistibility up to 100 degrees in Celsius. Furthermore, due to its comparatively larger antenna size than other product form factors, the tapping card can fulfill a longer reading distance. Meantime, supply various ways to do artwork printing, surface finish and numbering to make your card look unmatched.
Applications:
Access Control / Personal Identification / Loyalty Program / Transit Pass
Features:
Custom artwork printing / ID numbering or personalization available /
Different materials for composite card / Dual Frequency is an option
Specifications:
Frequency
125 KHz ± 3% N 13.56MHz±3%N
865-868MHZN 902-928MHZ±3%
Size
85.6 x 54 x 0.8 mm (LxWxH)
Weight
5.6 g
Material
PVC PVC+NPETGN PVC+PETF
Color
Pearl white N Lvory white
( Customized color availabe )
Options
Customized artwork printing: Offset / Silk Screen / Single
Card ID Numbering: Laser engraving / Inkjet printing
Thermal printing Finish: Matt / Glossy / Thermo rewrite Film
Others: Slot punch / mark, signature panel
Protection Class
IP66
Operating Temperature
PVC: -25 to 50°C
PVC+NPETG: -25 to 50°C
PVC+PETF: -30 to 70°C
Storage Temperature
PVC: -25 to 50°C
PVC+NPETG: -25 to 60°C
PVC+PETF: -40 to 100°C

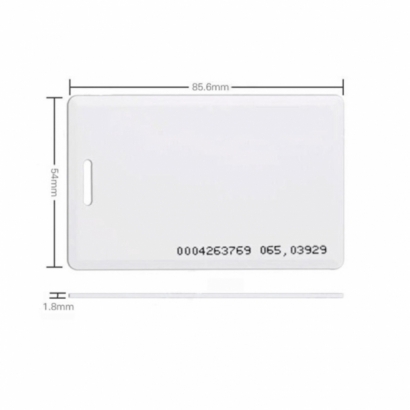

Clamshell Card is a cost-effective solution. Also, the robust housing makes no easy damage by bending or torsion.
This tapping card is a type of proximity card that uses radio frequency identification (RFID) technology. It is called a "clamshell" card because it consists of two rigid plastic pieces that are joined together using a hinge, similar to a clamshell. The card is designed to protect the internal RFID components from damage and wear.
Applications:
Clamshell cards are commonly used for access control systems in various environments, such as office buildings, educational institutions, and parking facilities. They are durable and resistant to bending or flexing due to their rigid construction. The two halves of the clamshell card can be designed to display logos, branding, or identification information on the outside for easy recognition and identification.
Specifications:
Frequency
125 KHz ± 3% N 13.56MHz±3%
865-868MHZ, 902-928MHZ±3%

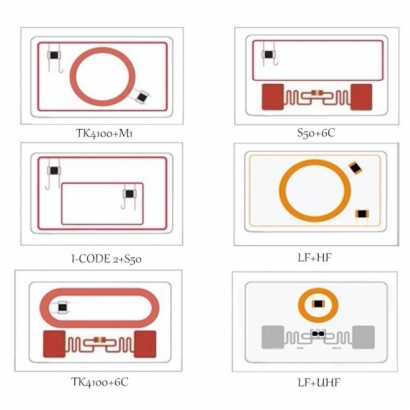

The smart card, such as Dual Frequency Card is a universal used and popular RFID transponder form factor. GN can establish card with PVC, PETG or even PETF to make the card body with enhanced heat-resistibility up to 100 degrees in Celsius. Furthermore, due to its comparatively larger antenna size than other product form factors, a card can fulfill a longer reading distance. Meantime, supply various ways to do artwork printing, surface finish and numbering to make your card look unmatched.
Applications:
Access Control / Personal Identification / Loyalty Program / Transit Pass
Features:
Custom artwork printing / ID numbering or personalization available /
Different materials for composite card / Dual Frequency is an option
Variety of RFID IC on option (HF/UHF/LF) for alternation.
Waterproof, Multiple Colors and Shapes.
Laser Printing / Silkscreen Printing Logo.
Descriptions:
The rfid keyfob encompasses RFID technology with the ability to customize to a customer’s specifications. Users may choose from various colors and even add a corporate logo or design. Serial numbers may also be printed for easy identification.
Applications:
Access control system / Attendance system / Elevator floor control / Electronic Mailbox/NFC
HF : ISO 14443A
Mifare S50 / Mifare S70 / Mifare Ultralight / Mifare Desfire
Mifare F08/ Ntag 203/ Ntag 213/ Ntag 215/ Ntag 216
Mifare Plus / Mifare ultralight Evl / Mifare ultralight C
ISO 15693
I-Code SLI / I-Code SLI-S / I-Code EPC / MSR3200
ST LR12K / TI Tag-it HF-I Standard
UHF : Nxp U8 / Nxp U9 / IMPINJ Monza 4QT
Customized Item:
Laser engraving:
The customer provides the image/ laser engraving format (monochrome, gradient effect can not be laser engraved) to develop the laser engraved format or pattern effect.
Inkjet number:
The internal code of the card or TAG is printed on the product by means of a typeface head, and there are many kinds of coding formats, which can be provided by the customer or in the company's standard format (the company's coding format sample) to spray the code.
Other items:
The type of key ring hooking, product size, appearance color, and induction frequency can be customized.
Descriptions:
The rfid keyfob encompasses RFID technology with the ability to customize to a customer’s specifications. Users may choose from various colors and even add a corporate logo or design. Serial numbers may also be printed for easy identification.
What we have:
Variety of RFID IC on option (HF/UHF/LF) for alternation.
Waterproof, Multiple Colors and Shapes.
Laser Printing / Silkscreen Printing Logo.
Applications:
Access control system / Attendance system / Elevator floor control / Electronic Mailbox/NFC
Specifications:
Frequency
125 KHz ± 3% N 13.56MHz±3%
865-868MHZN 902-928MHZ±3%
Size
49.6 x 26.0 x 5.1 mm (LxWxH)
45.0 x 27.5 x 5.3 mm (LxWxH)
HF : ISO 14443A
Mifare S50 / Mifare S70 / Mifare Ultralight / Mifare Desfire
Mifare F08/ Ntag 203/ Ntag 213/ Ntag 215/ Ntag 216
Mifare Plus / Mifare ultralight Evl / Mifare ultralight C
ISO 15693
I-Code SLI / I-Code SLI-S / I-Code EPC / MSR3200
ST LR12K / TI Tag-it HF-I Standard
UHF : Nxp U8 / Nxp U9 / IMPINJ Monza 4QT
Laser engraving:
The customer provides the image/ laser engraving format (monochrome, gradient effect can not be laser engraved) to develop the laser engraved format or pattern effect.
Inkjet number:
The internal code of the card or TAG is printed on the product by means of a typeface head, and there are many kinds of coding formats, which can be provided by the customer or in the company's standard format (the company's coding format sample) to spray the code.
Other items:
The type of key ring hooking, product size, appearance color, and induction frequency can be customized.
All our RFID Key fobs Leather can be customized per your detail requirements for printing, color, package etc. Leather key fob logo can be silk printing and hot stamp printing.
Key fobs Leather with an iron ring for the attachment. Available different forms & size.
Key fobs Leather is a great solution for security systems, access control systems and time attendance systems.
Applications:
Access control system / Attendance system / Elevator floor control / Electronic Mailbox/NFC
Specifications:
Frequency
125 KHz ± 3% N 13.56MHz±3%
865-868MHZN 902-928MHZ±3%
The rfid keyfob encompasses RFID technology with the ability to customize to a customer’s specifications. Users may choose from various colors and even add a corporate logo or design. Serial numbers may also be printed for easy identification.
What we have:
Variety of RFID IC on option (HF/UHF/LF) for alternation.
Waterproof, Multiple Colors and Shapes.
Laser Printing / Silkscreen Printing Logo.
Applications:
Access control system / Attendance system / Elevator floor control / Electronic Mailbox/NFC
Specifications:
Frequency
125 KHz ± 3% N 13.56MHz±3%
865-868MHZN 902-928MHZ±3%
HF : ISO 14443A
Mifare S50 / Mifare S70 / Mifare Ultralight / Mifare Desfire
Mifare F08/ Ntag 203/ Ntag 213/ Ntag 215/ Ntag 216
Mifare Plus / Mifare ultralight Evl / Mifare ultralight C
ISO 15693
I-Code SLI / I-Code SLI-S / I-Code EPC / MSR3200
ST LR12K / TI Tag-it HF-I Standard
UHF : Nxp U8 / Nxp U9 / IMPINJ Monza 4QT
Customized Item:
Laser engraving:
The customer provides the image/ laser engraving format (monochrome, gradient effect can not be laser engraved) to develop the laser engraved format or pattern effect.
Inkjet number:
The internal code of the card or TAG is printed on the product by means of a typeface head, and there are many kinds of coding formats, which can be provided by the customer or in the company's standard format (the company's coding format sample) to spray the code.
Other items:
The type of key ring hooking, product size, appearance color, and induction frequency can be customized.
The rfid keyfob encompasses RFID technology with the ability to customize to a customer’s specifications. Users may choose from various colors and even add a corporate logo or design. Serial numbers may also be printed for easy identification.
What we have:
Variety of RFID IC on option (HF/UHF/LF) for alternation.
Waterproof, Multiple Colors and Shapes.
Laser Printing / Silkscreen Printing Logo.
Applications:
Access control system / Attendance system / Elevator floor control / Electronic Mailbox/NFC
Upgrade to RFID keyfobs for a more secure and convenient access control experience. Explore our range of options designed to meet your specific requirements
