Animal Tag

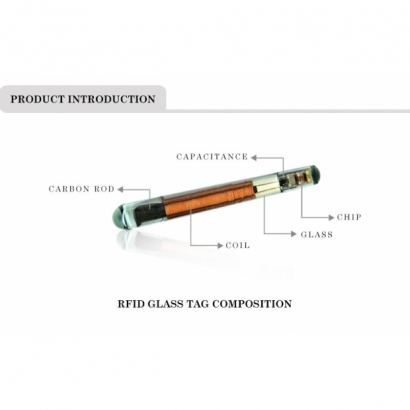

RFID Glass Tag:

Descriptions:

RFID Glass Tag help manage and safeguard animals. Standard Glass Tag units are enclosed in biocompatible  glass making them harmless to animals. PIT tag is specially designed for animal and plant identification management, healthy breeding, traceability, species protection and traceability management. Products are widely used in the field of fish (Ocean and fresh water), small and large mammals, reptiles and amphibians, birds and bats and other living animals recognition, as well as rocks, plants, trees and other general object recognition.

Applications:

Pet tracking/ livestock/ laboratory plant and animal identification

Specifications:







Frequency


125MHz+3% • 134.25MHz±3% N 13.56MHz±3%




Size


01.25*7mm N 01.4*8mm N 03*13mm N 03*15mm
04*22mm N 04*30mm or customized




Weight


100MG+/-35MG




Material


Bioglass




Color


Transparent




Protection Class


IP68




Operating/Storage
Temperature


-25°C- +85°C




Available
RFID
Chip


LF : EM4100 / EM4200 / EM4305 / EM4450 / TK4100
TEMIC 5530 / TEMIC 5567 / TEMIC 5577
HiTAG1 / HiTAG2 / HiTAG S2048




HF : ISO 14443A
Mifare S50 / Mifare S70 / Mifare Ultralight / Mifare Desfire
Mifare F08/Ntag 203/ Ntag 213/ Ntag 215/ Ntag 216
Mifare Plus / Mifare ultralight Evl / Mifare ultralight C
ISO 15693
I-Code SLI / I-Code SLI-S / I-Code EPC / MSR3200
ST LR12K / TI Tag-it HF-I Standard

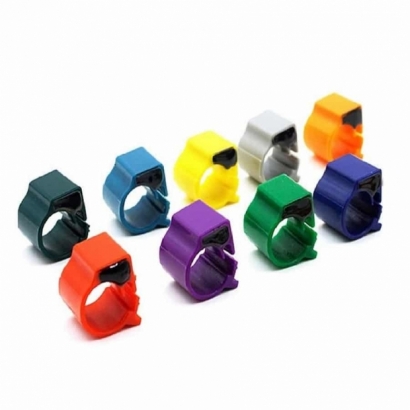

Bird Foot Ring Tag:

Descriptions:

IDT Bird Foot Ring Tag is suitable for effective bird conservation and identity. A bird foot ring tag is a small plastic or metal band tied to a bird’s leg so that it can be identified as an individual bird and encode birth date, species, and habit. For Example, a feeder with those records would put birds in a different cage to treat them differently. Along with those data, feeders can know how many birds they should prepare for one race and how many times birds can participate, with the whole data and RFID tracking system.

Applications:

Pigeon / Poultry / Animal Tracking, etc.

Specifications:








Frequency


125 KHz ± 3% N 13.56MHz±3%




Size


L 29mm x 14mm N S 21mm x 15mm




Weight


lg




Options


Laser Engraving




Material


TPU+ Epoxy




Color


Customized color availabe




Protection Class


IP68




Operating Temperature


-40°C- +80°C




Available
RFID
Chip


: EM4100 / EM4200 / EM4305 / EM4450 / TK4100
TEMIC 5530 / TEMIC 5567 / TEMIC 5577
HiTAG1 / HiTAG2 / HiTAG S2048




HF : ISO 14443A
Mifare S50 / Mifare S70 / Mifare Ultralight / Mifare Desfire
Mifare F08/Ntag 203/ Ntag 213/ Ntag 215/ Ntag 216
Mifare Plus / Mifare ultralight Evl I Mifare ultralight C
ISO 15693
I-Code SLI / I-Code SLI-S / I-Code EPC / MSR3200
ST LR12K / TI Tag-it HF-I Standard

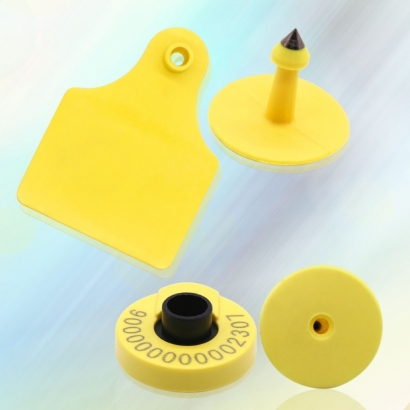

RFIDEarTag:

Descriptions:

Provides a diverse selection of RFID tracking devices for animals that enables farmers, breeders, and veterinarians to fulfill their traceability and identification needs. The RFID tags for animals are available at a variety of frequencies that include 134.2 KHz frequency, 125 KHz low frequency and 860 MHz to 960 MHz operation frequency. Most of the animal RFID tags are waterproof and shock resistant.

Applications:

Livestock Management, Livestock Tracking, Pet and Lab Identification, Animal Breeding, Plant and Food Safety Management, etc.

Specifications:








Frequency


125 KHz ± 3% N 13.56MHz±3%
865-868MHZN 902-928MHZ±3%




Size


M:29.5*23mm
F:73.5*113.5mm or Customized




Weight


10.0+/-0.05g




Options


Customized color availabe




Color


IP68




Protection Class


-20°C- +50°C




Available
RFID
Chip


: EM4100 / EM4200 / EM4305 / EM4450 / TK4100
TEMIC 5530 / TEMIC 5567 / TEMIC 5577
HiTAG1 / HiTAG2 / HiTAG S2048




HF : ISO 14443A
Mifare S50 / Mifare S70 / Mifare Ultralight / Mifare Desfire
Mifare F08/ Ntag 203/ Ntag 213/ Ntag 215/ Ntag 216
Mifare Plus / Mifare ultralight Evl / Mifare ultralight C
ISO 15693
I-Code SLI / I-Code SLI-S / I-Code EPC / MSR3200
ST LR12K / TI Tag-it HF-I Standard




UHF : Nxp U8 / Nxp U9 / IMPINJ Monza 4QT
